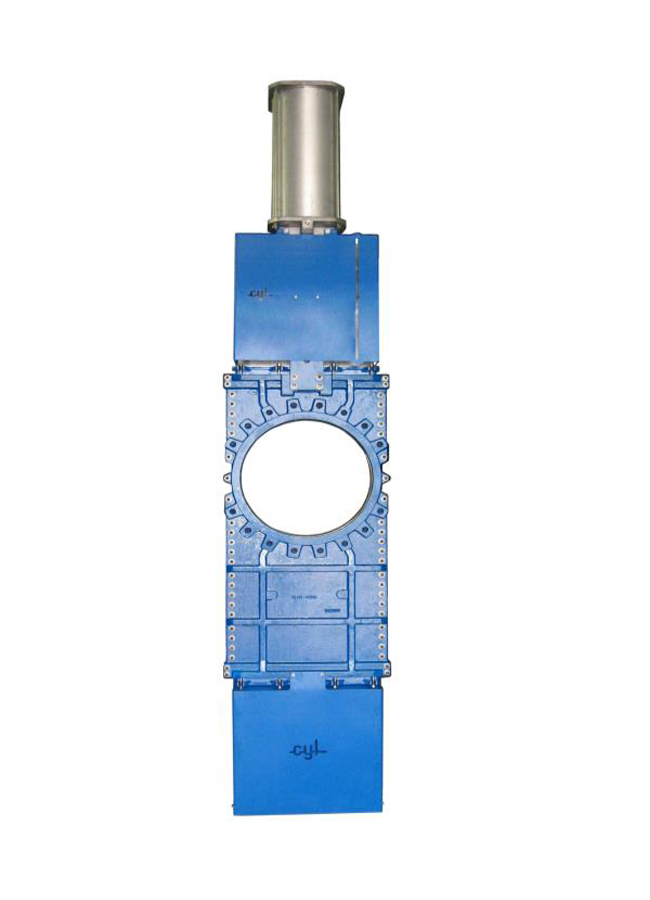

Through Conduit Knife Gate Valves

Otkonsas Kontrol Vanaları
Otkonsas Kontrol Vanaları Otkonsas Kontrol Vanaları
These kind of valves are designed for the applications where high reliablty is needed. Double seated wafer body helps bidirectional closing without choking.

Main Usage
Cellulose and pulp paper
Power Plants
Water Treatment Plants
Chemical Plants

Size
Between DN 50 and DN 1200

Working Pressure
10 bar , DN 50 - DN 250
6 bar , DN 300 - DN400
5 bar , DN 450
4 bar , DN 500 - DN600

Connection Options
EN1092 PN10 and ANSI B16.5 (class 150)
EN1092 PN6/16/25 (ANSI125)

Certification

DIR 98/37/CE
DIR 97/23/CE (PED) Akışkan: Grup 1 (b), 2 (Kat. ben mod A.)
DIR 94/9/CE (ATEX)
